Dry screw chemical vacuum pumps

CDS Series

Designed for harsh chemical environments

request a quote

As chemical processing becomes more complex and demanding, vacuum systems must deliver safe, reliable performance while handling aggressive media and meeting stricter environmental and cost-of-ownership requirements.

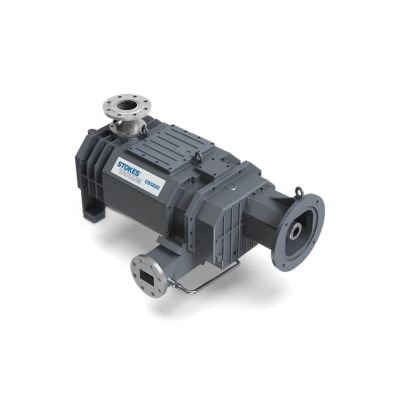

The Stokes CDS dry screw chemical vacuum pump from 250-1600 m³/hr is engineered to meet these challenges, with a design tailored to fine chemical, petrochemical and pharmaceutical applications. Featuring a variable-pitch dry screw mechanism for process flexibility and a plug-and-play, easy-to-use configuration, the Stokes CDS delivers dependable, adaptable and effluent-free vacuum performance while allowing customization to meet specific process needs.

Designed for harsh chemical environments

Excellent corrosion resistance is ensured with all wetted parts plated in Hastelloy® alloy, with titanium or duplex steel options available for highly aggressive processes. Integrated purge protection extends service life under harsh operating conditions, while flexible configuration options allow for bare shaft or direct drive arrangements. FKM sealing and a PTFE shaft seal come standard, delivering reliable containment and long-term durability.

Download our product brochure

PRODUCT DETAILS

Features

Ease of use

Benefit from high-performance screw vacuum technology in a smart, easy-to-use package. With straightforward installation, seamless system integration, comprehensive support, and dependable pumping performance, you can focus on your process with complete peace of mind.

Long life and low maintenance

Designed for durability and ease of service, the system delivers low maintenance costs and extended service intervals. This translates into higher productivity, reduced unplanned downtime, and dependable performance over the long term.

Extra performance

With high roughing and pumping speeds, the pump rapidly evacuates significantly reducing pump-down times. This faster evacuation accelerates overall process cycles, increasing throughput and operational efficiency where it matters most. The result is more productive equipment utilization, shorter process times, and improved overall performance in demanding industrial and chemical applications.

Compliant and configurable

Engineered to meet strict safety and compliance requirements, the system adapts easily to diverse customer needs. Modular, engineer-to-order building blocks enable customized pumping solutions, with selectable bottom or alternative exhaust configurations for seamless integration into your process.

Stokes Vacuum CDS Series Brochure

Download our Brochure

Stokes CDS Dry Screw Chemical Vacuum Pumps Brochure

Filename
Stokes CDS Series-EN-2025-Web.pdf
Size
1 MB
Format
pdf
Download

Applications

  • Chemical
  • Fine chemical
  • Petrochemical
  • Pharmaceutical

Product Specifications



  Units CDS250BS CDS400BS CDS650BS CDS800BS CDS1100BS CDS1300BS CDS1600BS
Nominal speed  m³/hr 250 400 650 800 1100 1300 1600
Ultimate pressure mbar(A) 0.05 0.05 0.05 0.05 0.05 0.05 0.5
Max. discharge pressure bar(A) 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Motor speed RPM 2950 2950 2950 2950 2950 2950 2950
Motor power kW 7.5 11 15 18.5 30 30 37
Noise level dB(A) ≤72 ≤76 ≤78 ≤80 ≤85 ≤85 ≤85
Dimension (Envelope) L mm 872 1022 1122 1197 1431 1578 1578
W 502 498 573 573 645 645 645
H 470 470 534 534 580 580 580
Weight kg 326 374 460 566 733 904 926
Inlet   DN65 DN65 DN100 DN100 DN150 DN150 DN150
